4200 Series SIDE SCAN SONAR SYSTEM

The All‐in‐one GPR system is a GPR solution that combines the antenna and the control unit into one enclosure.

One of the unique features of the 4200 is the optional Multi-Pulse (MP) technology, which places two sound pulses in the water rather than one pulse like conventional side scan sonar systems. This allows the 4200 to be towed at speeds of up to 10 knots while still maintaining 100% bottom coverage. In addition, the MP technology will provide twice the resolution when operating at normal tow speeds, thus allowing for better target detection and classification ability. The addition of the optional MP technology provides the operator with two modes of operation; either High Definition Mode (HDM) or High Speed Mode (HSM). This software-selectable mode of operation provides the operator the ability to select the best configuration for the specific job type.

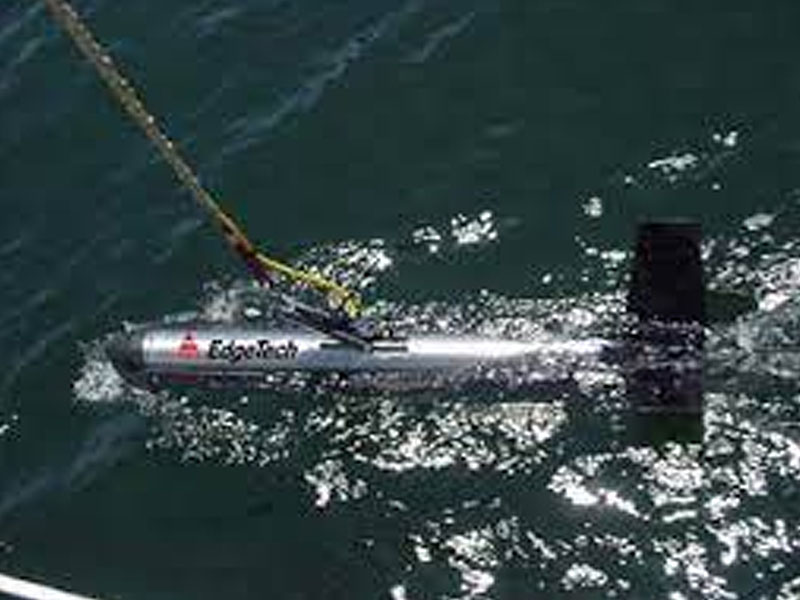

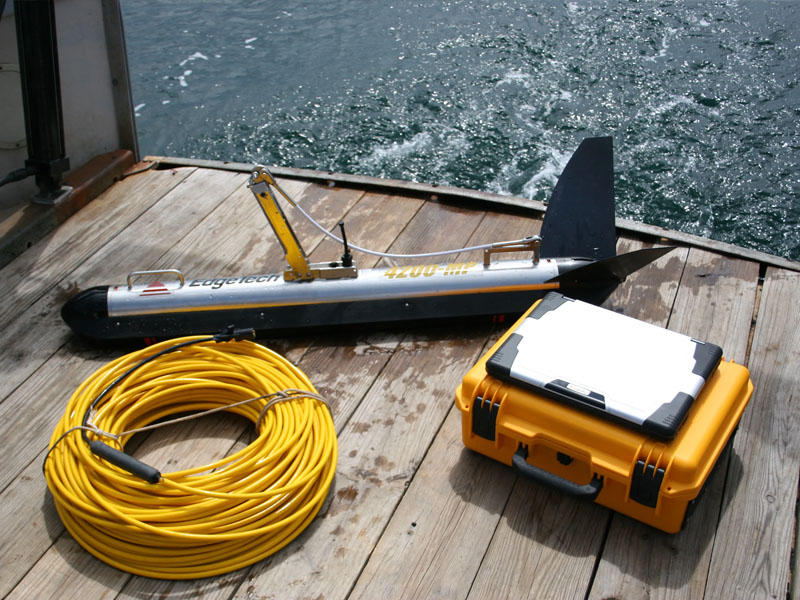

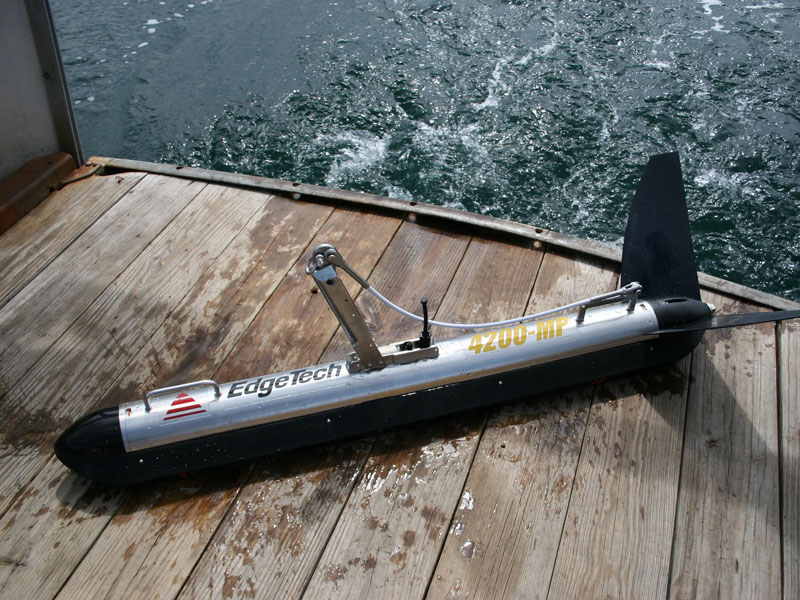

All EdgeTech 4200 systems are comprised of a topside system and a reliable stainless steel towfish. A choice of dual simultaneous frequency sets are available to the user and topside processors come in a choice of configurations from portable to rack mounted units. In addition, an easy-to-use GUI software is supplied with every unit.

Applications:

• Cable & Pipeline Surveys
• Geological/Geophysical Surveys
• Mine Countermeasures (MCM)
• Geohazard Surveys
• Channel Clearance
• Search and Recovery
• Archeological Surveys
