Advanced features for maximum measurement versatility and unmatched product and data security.

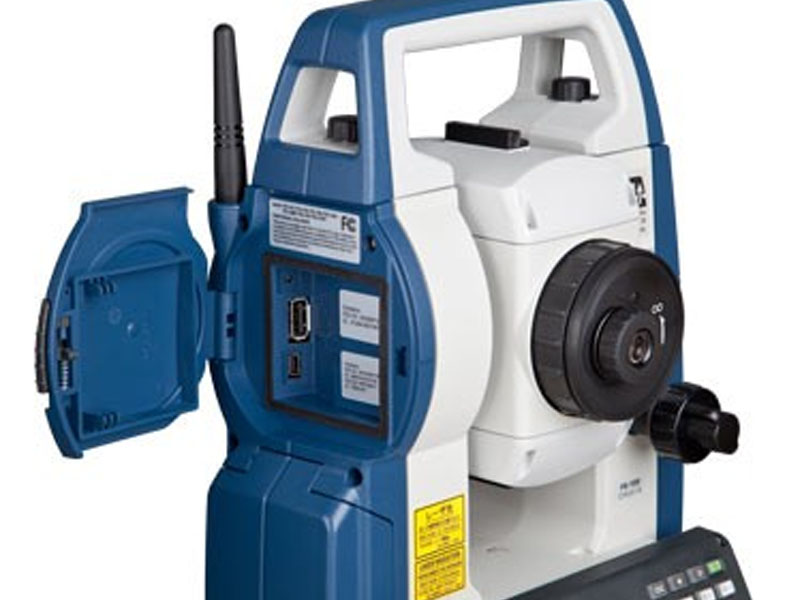

The FX total station provides the advantage of on-board Windows® CE operating system and comes standard with MAGNET™ Field, a cloud-based application software for unmatched measurement ease and data security.
It also features TSshield, an exclusive telematics-based communications module that provides remote security, tracking, and diagnostic support. Long-Range Bluetooth® technology allows data to be seamlessly transferred to a Bluetooth-equipped controller. Its compact size and long-lasting battery makes long work days easier to manage.
Key FX features include::
- Windows® CE operating system in compact, rugged body
- MAGNET or GeoPro Field on-board application software
- Advanced Angle Measurement System
- RED-Tech advanced reflectorless measurement
- Long-Range Bluetooth® wireless communication
- TSshield security, tracking, and remote diagnostic support
- Available in 1, 2, 3, and 5 second models
Specifications:
- • Angle Measurement 1", 2", 3", 5".
- • Distance Measurement (Single Prism) 1.3 to 4,000m (4.3 to 13,120ft.) / Under good conditions*6: 5,000m (16,400ft.)
- • Distance Measurement (Reflectorless) 0.3 to 500m (1.0 to 1,640ft.)*
- • Accuracy (Single Prism) (2 + 2ppm x D) mm
- • Accuracy (Reflectorless) (3 + 2ppm x D) mm* Measuring range:0.3 to 200m
- • Measuring Time Fine: 0.9s (initial 1.7s), Rapid: 0.7s (initial 1.4s), Tracking: 0.3s (initial 1.4s)
- • Tilt Compensation Dual Axis, Compensation Range +/- 6'
- • Wireless Communication Bluetooth Class 1 - 300m (980ft)
- • Operating System/Processor Microsoft Windows® CE 6.0 / MAGNET FIELD
- • Display 3.5in. / Transmissive TFT QVGA color LCD
- • Dust/Water Protection IP65
- • Operating Temperature -20 to +50ºC (-4 to +122ºF).
- • Size (single face model) W191 x D174 x H348mm (W7.5 x D6.9 x H13.7in.)
- • Weight (battery & tribrach) Approx. 5.7kg (12.6 lb.)
- • Operating Time Approx. 20 hours (single distance measurement every 30 seconds)
